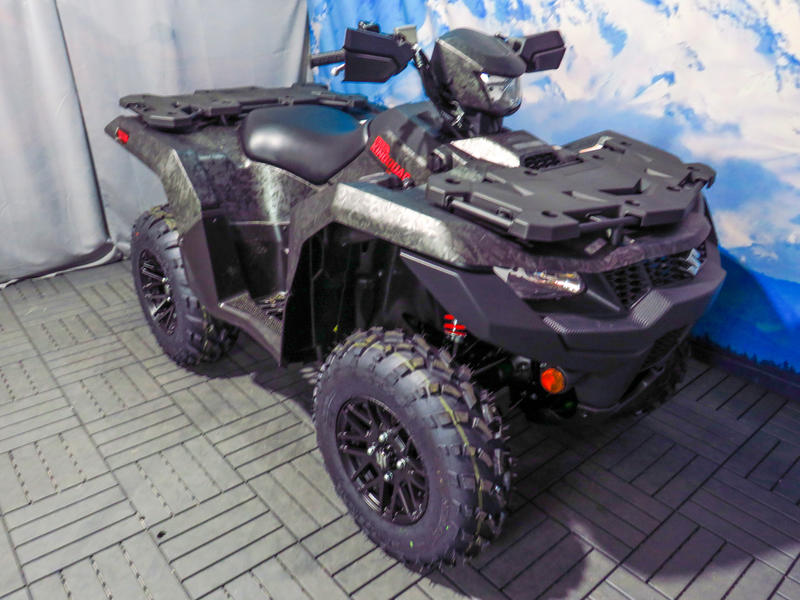

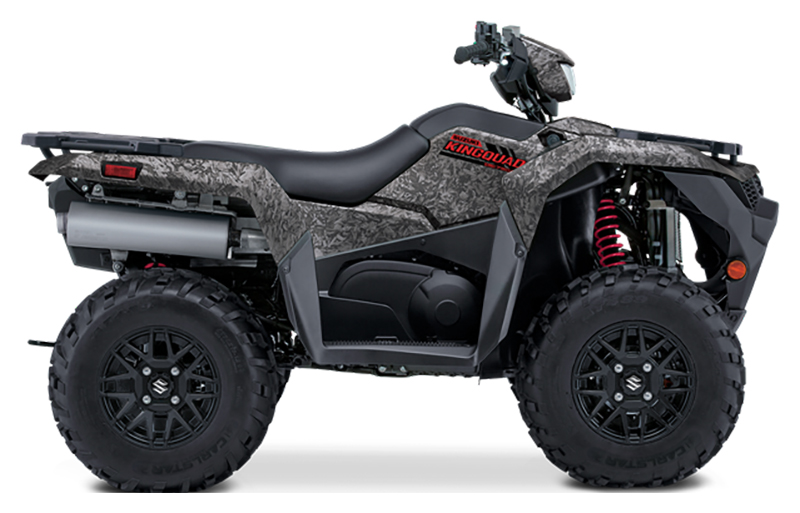

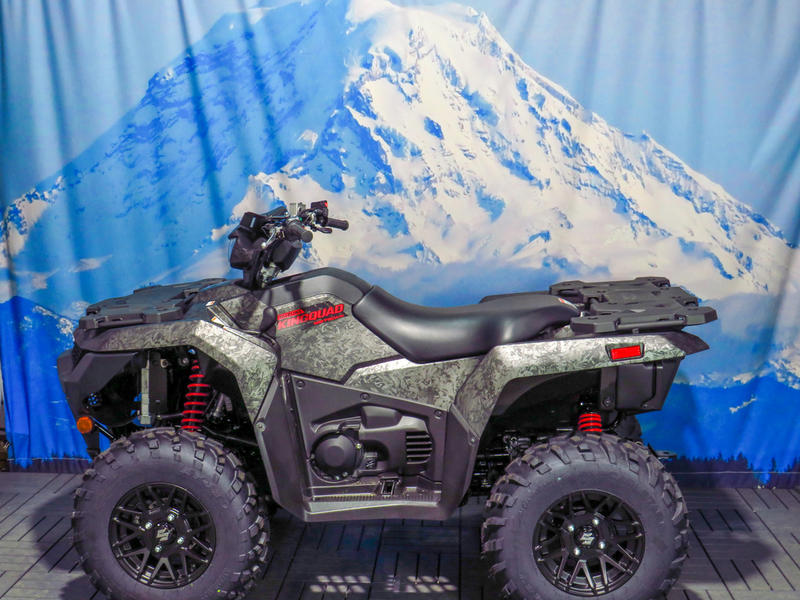

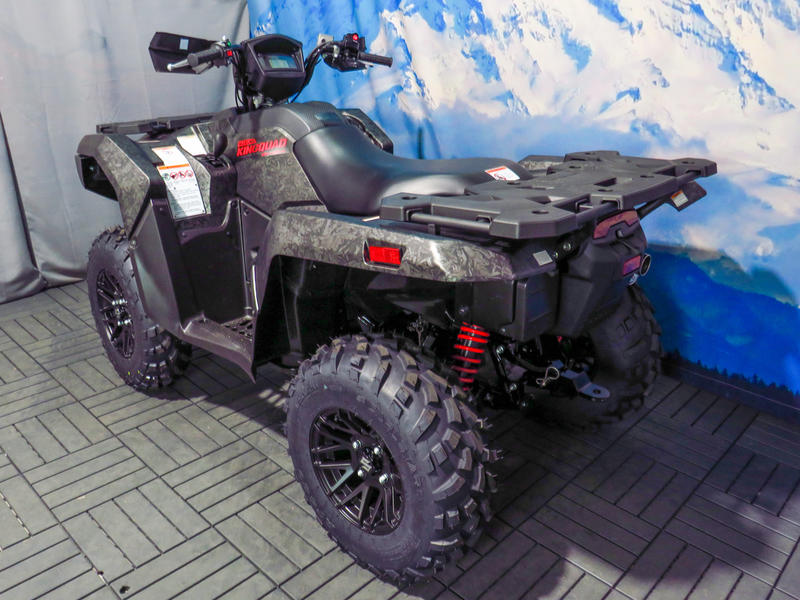

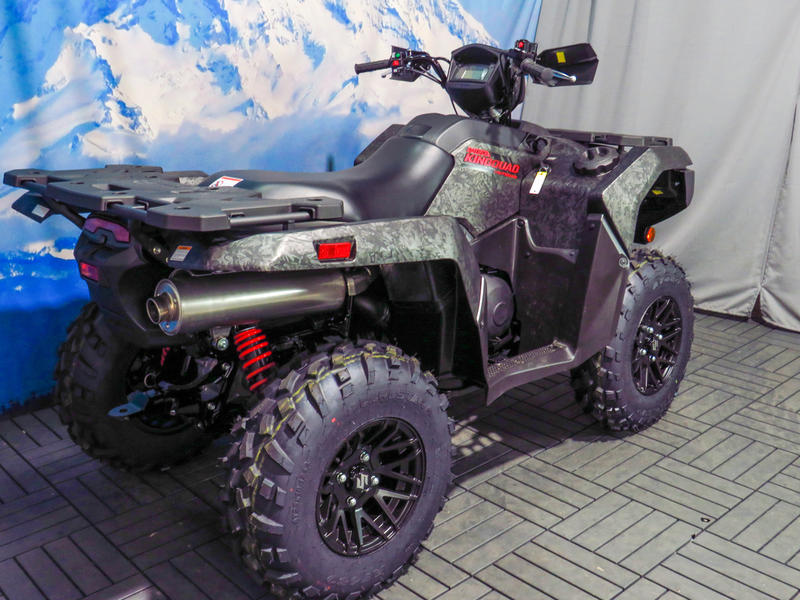

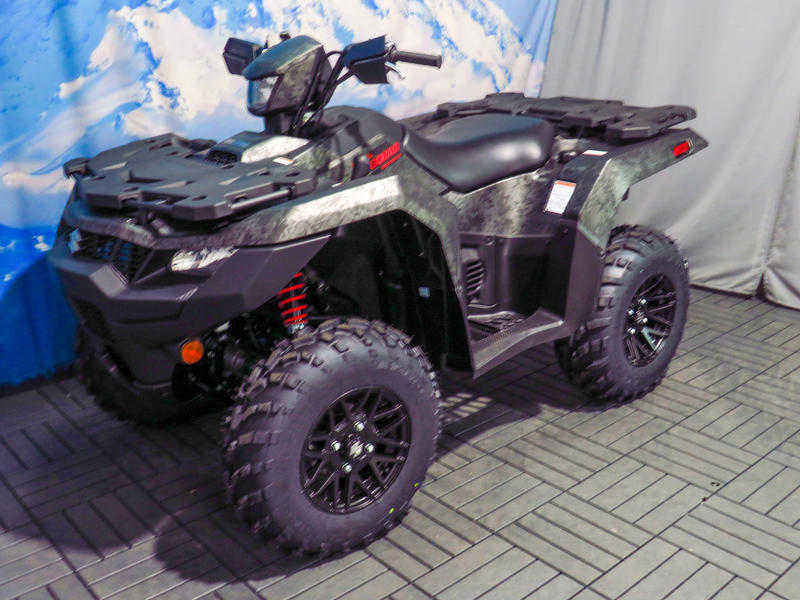

2025 Suzuki KingQuad 750AXi Power Steering SE+

• A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, quick-release snowplow, aluminum skid pans, rack extensions, utility box, and more.
• Suzuki’s 24-month limited warranty is much longer than other ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).
• Minimum rider age: 16 years old

Body & Styling Features

• Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.
• The rugged front and rear steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance.
• The handguards (knuckle covers) help protect the rider’s hands from the elements and are styled to match the KingQuad’s bodywork.
• The receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s higher towing capacity (up to 1322 pounds). Including a ball mount, a hitch pin, and an R-clip so it’s easy to setup your ATV for towing (a trailer ball or hook is not included).

Chassis Features

• Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment.
• To increase rider comfort, make the ATV easier to ride, and increase towing capacity, the KingQuad’s frame has thick-wall frame tubes and reinforced brackets in key areas.
• The sealed, multi-plate rear brake system’s foot brake lever ratio helps provide consistent performance. The rear brake’s clutch-type design is highly durable, has reduced unsprung weight, and minimal maintenance requirements.

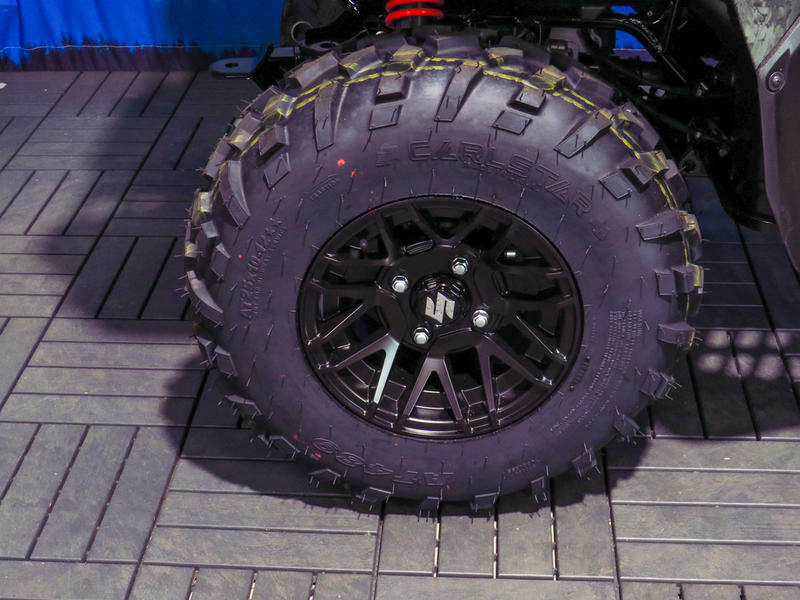

• High traction 25-inch Carlisle® tires are mounted on lightweight, cast aluminum wheels with a special blacked-out finish.
• Covered in distinctive Armored Blue Gray color the angular bodywork features high-clearance fenders that offer great protection for the rider from flying debris. The body panels were designed to simplify maintenance needs, such as oil level checks and fuel and air filter service.
• The base steering characteristics are tuned to an “under-steer” condition for low effort and tighter turning in tight conditions. This permits higher, more comfortable handlebars to be used.
• The KingQuad’s advanced electric power steering system has higher capacity than the prior generation for significantly reduced steering effort and helps damp vibration and jolts to the rider.
• A large diameter rear stabilizer bar with compliant bushings helps control body movement while reducing shocks to the rider.
• The dual hydraulic front disc brakes combine high-friction brake pad material, fluid lines, and a lever ratio to provide ample braking performance.
• Suzuki’s plush T-shaped seat delivers rider mobility during spirited or difficult terrain riding.
• Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.

Electrical Features

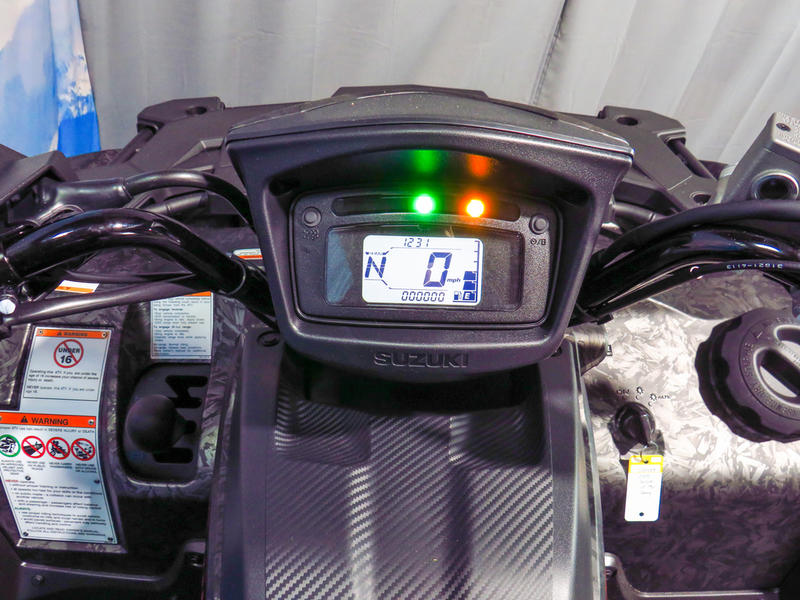

• The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, riding range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.

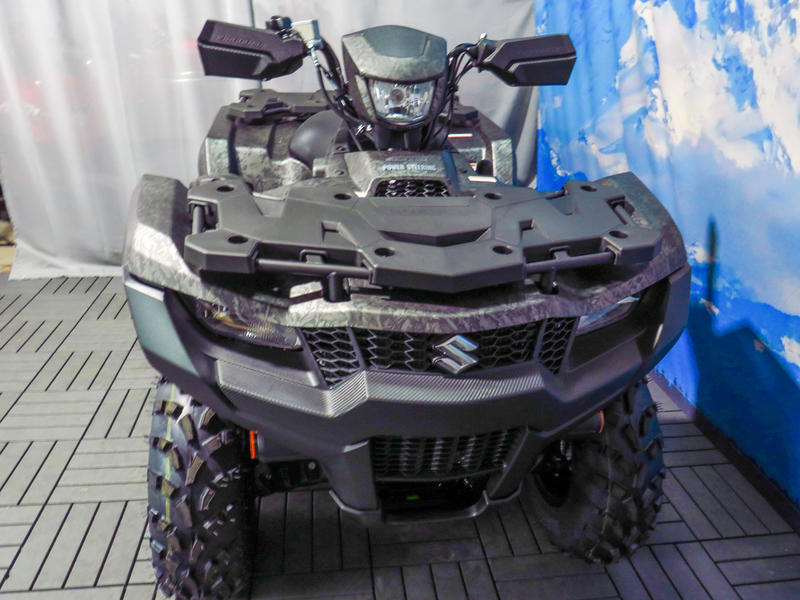

• The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high- and low-beam settings) are part of the KingQuad’s distinctive bodywork.
• A high-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.
• Winch-ready mounts and wire conduit make winch installation simple.

Engine Features

• The 722cc, DOHC, single-cylinder, liquid-cooled, four-stroke engine delivers strong low- to mid-range torque and impressive peak horsepower. The four-valve cylinder head has large 36mm intake valves and straight ports for superb cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system helps create a compact engine.
• The engine’s high-capacity oil pump delivers a strong flow of cooling oil to the piston oil jet system to help increase engine durability.
• Advanced Suzuki Fuel Injection provides superb throttle response and fuel efficiency while delivering power consistently across the full rev range. It also improves engine starting in all conditions.
• The KingQuad easily achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard and are eligible for California off-highway vehicle (OHV) registration.
• The cylinder and head are canted forward for a low center of gravity, resulting in reduced engine height and lower seat height. High-mount air intake avoids water and debris.
• A lightweight aluminum cylinder uses SCEM (Suzuki Composite Electrochemical Material) coating for excellent heat transfer and ring sealing, resulting in superb combustion chamber efficiency.
• The engine also features dual balancer shafts for smooth operation.
• Highly efficient iridium spark plug helps deliver outstanding acceleration, high fuel efficiency and durability.
• High-capacity aluminum radiator with a large diameter, thermostatically controlled cooling fan provides stable engine operating temperature.

Transmission Features

• The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill.
• The CVT tuning provides controlled engine braking to boost rider confidence and comfort during downhill riding.
• A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.

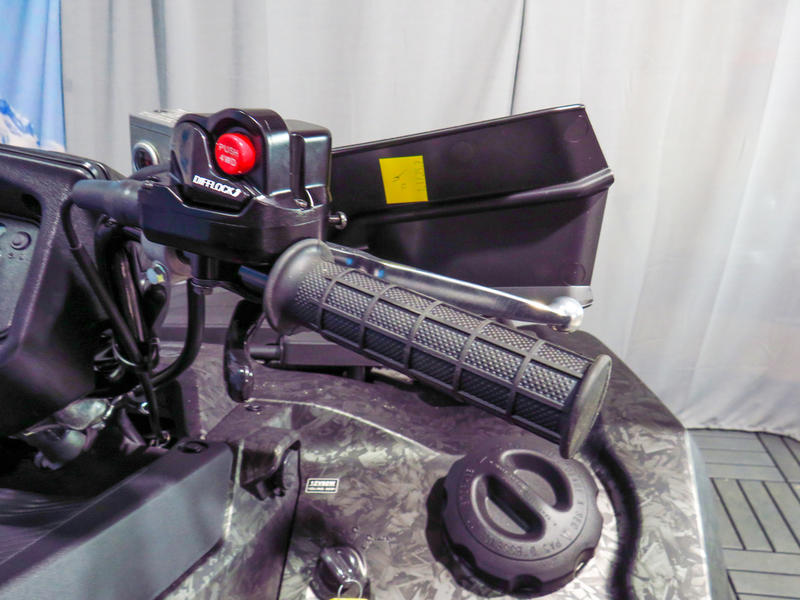

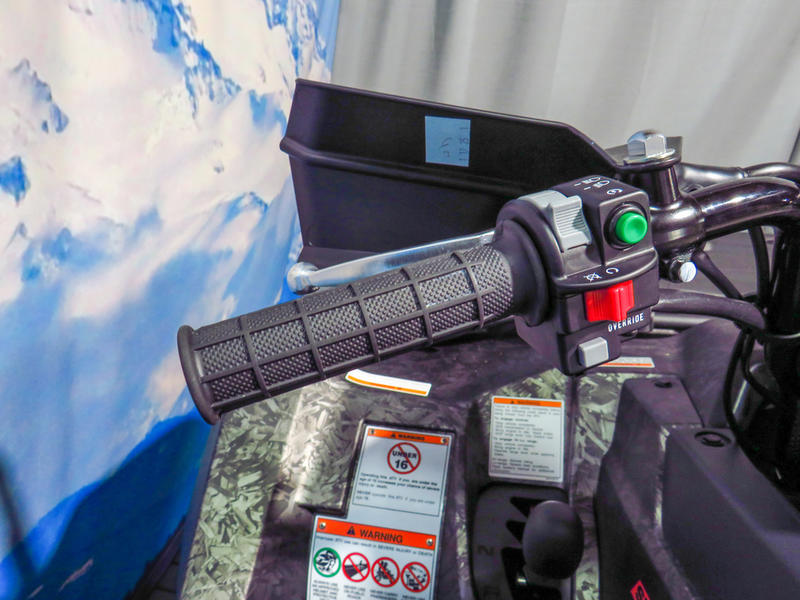

• Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.

Utility / Convenience Features

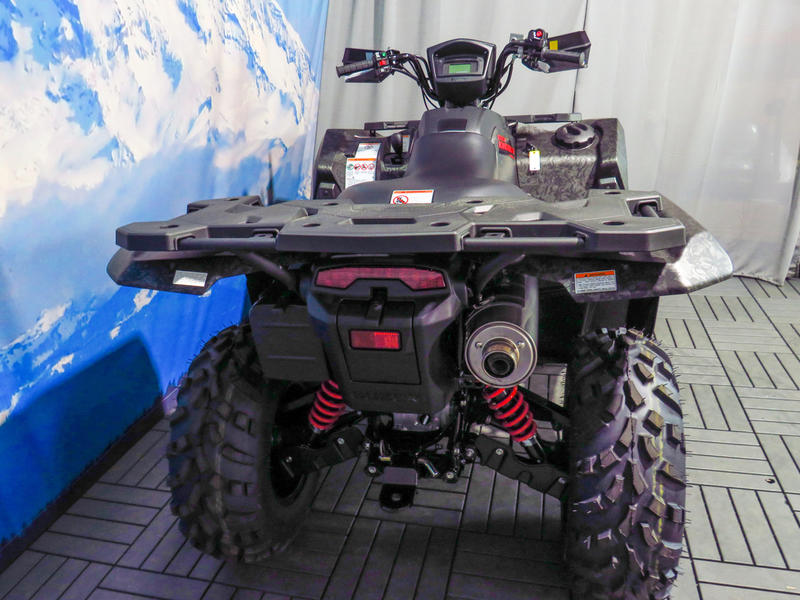

• The low-draw and bright LED taillight helps make the ATV visible in dark conditions while conserving power.
• The large 4.6-gallon (17.5 L) fuel tank is positioned for a low center of gravity. It includes a vacuum-operated petcock and a ratchet-style filler cap (which prevents over tightening so it can be easily unscrewed for refilling).
• A large 4.0-liter storage compartment is centrally located at the rear of the ATV adjacent to the 4.0-liter left-side compartment providing generous cargo capacity. The 2.8-liter water-resistant front storage compartment includes an easy-access screw-on cap.

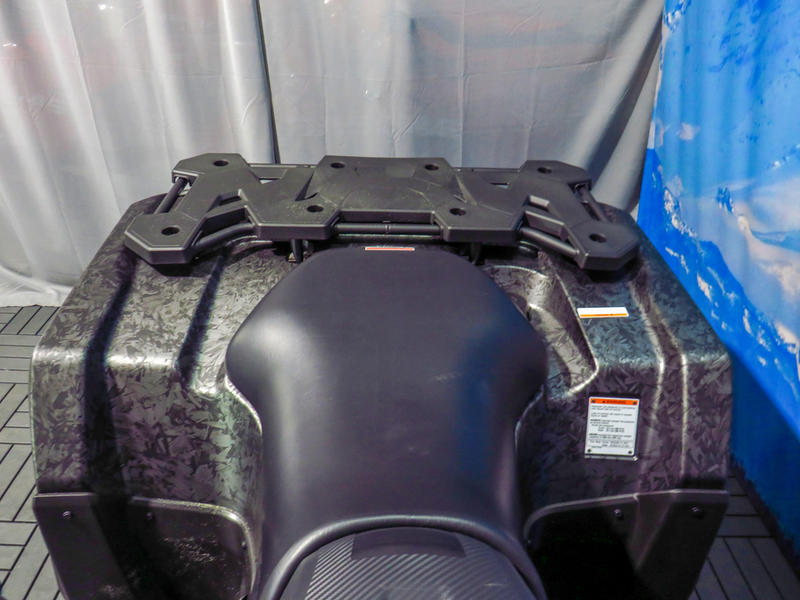

• The cargo racks have high-impact plastic covers to shield cargo from wear while enhancing the quad’s appearance. The covers are easily removable for mounting of Suzuki accessories or other gear directly to the cargo racks.

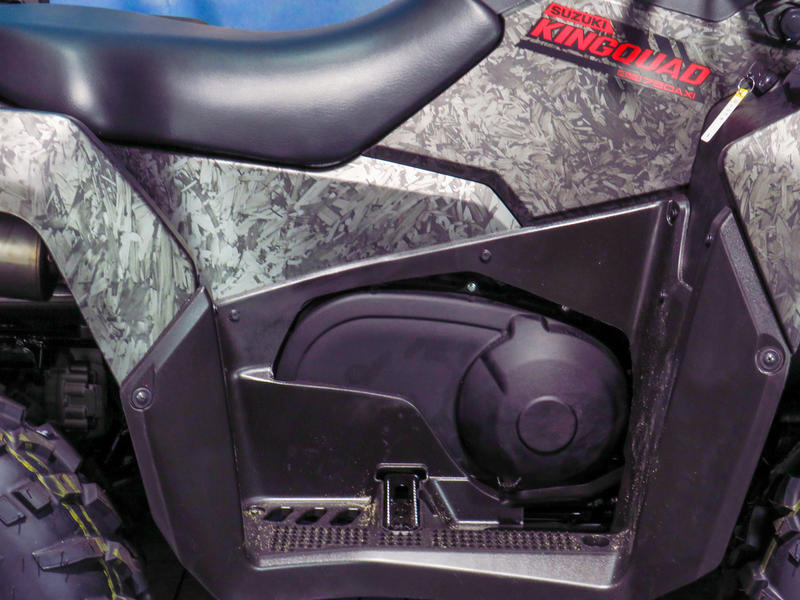

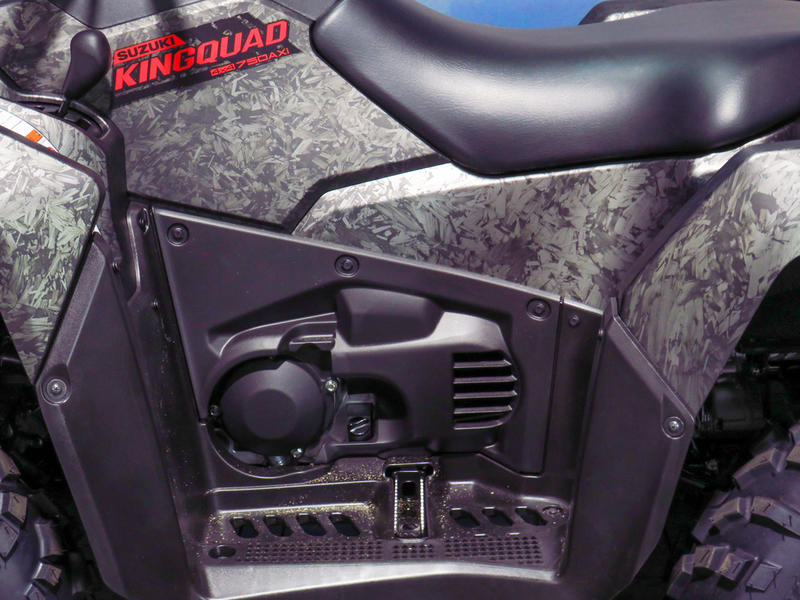

• Full floorboards with integrated raised footpegs help shield the rider from the elements.
• This KingQuad includes a ball mount, a hitch pin, and an R-clip so it’s easy to setup your ATV for towing (a trailer ball or hook is not included).
